products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Solid Aluminum Wall Cladding
Created with Pixso.

PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade

PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade

PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade

Brand Name: M-CITY
Model Number: MCT-perforated metal facade
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 50000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1500x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Laser Cut Metal Screen
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
50000sq.m
Highlight:

solid aluminum wall cladding grey PVDF

,

aluminum facade cladding 3mm thickness

,

building facade cladding 20 years warranty

Product Description
Solid Aluminum Wall Cladding with PVDF Coating
High-quality solid aluminum wall cladding featuring grey PVDF coating with 20-year warranty and 3mm thickness, specifically designed for building facade applications.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 0 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 1 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 2 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 3 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 4 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 5 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 6 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 7
3D Facade Design Metal Cladding
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 8 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 9
Perforated Aluminum Solid Panels
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 10 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 11
Aluminum Cladding Installation Guide
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 12 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 13
Corrugated Perforated Screen Aluminum Sheet
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 14
CNC Cutting Metal Facade Assembly
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 15
Exterior Aluminum Decorative Panels
Custom exterior aluminum decorative panels with round holes and perforation patterns for unique architectural designs.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 16
3D Metal Clad Aluminum Facades
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 17
Custom Manufacturing Capabilities
As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit project sites to measure installation specifications and create shop drawings for smooth installation.
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only frame construction, bolts, and sealants for finishing panel gaps - making it an efficient solution for building envelope and decoration.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 18
Product Specifications
Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheets with standard thickness options of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.
The panel system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.

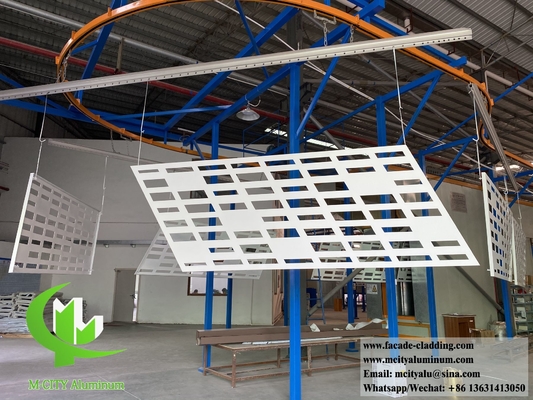

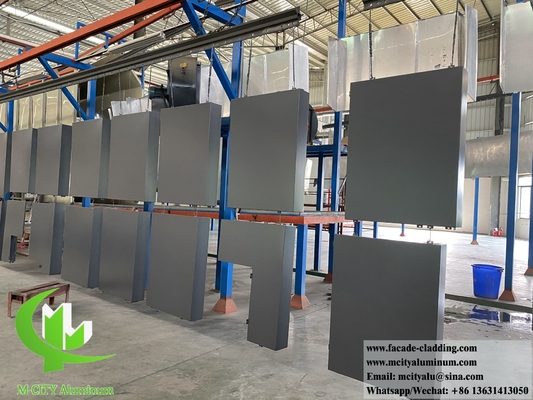

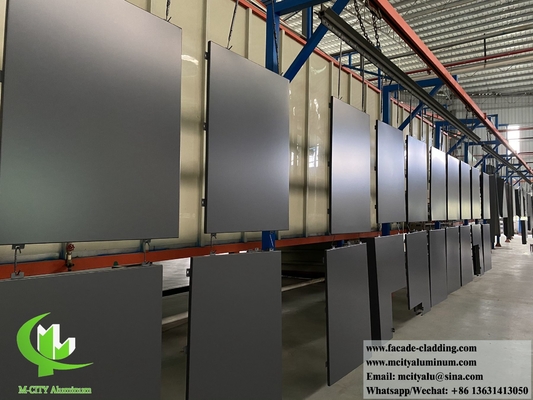

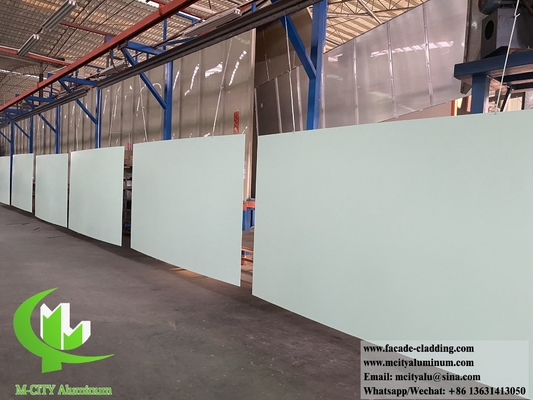

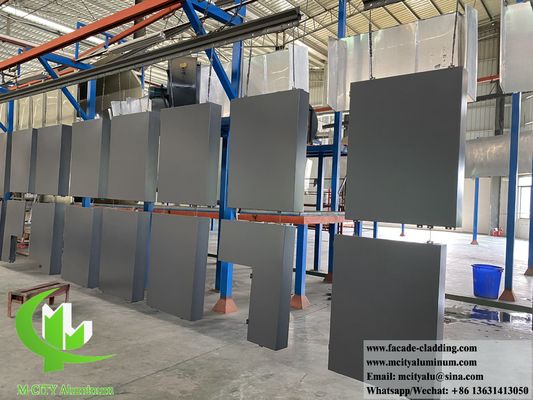

Manufacturing Facility
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 19
Global Shipping
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 20
M-City Aluminum factory produces various metal facade panels with perforation designs or laser cut designs. We welcome project requirements for custom facade designs.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 21
3D Metal Facade Wall Cladding
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 22
Frequently Asked Questions
Are you a trading company or factory?
We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your minimum order quantity?
We accept small orders with a minimum of 80 square meters.
What is the delivery time?
Production is completed within 30 days after receiving deposit.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. You can provide drawings or pictures for custom production.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 23
M-CITY Metal Aluminum Facade Cladding Specification
Aluminum panels are made from Aluminum alloy 3003 series and serve as curtain wall systems for wall protection and non-lighting walls, replacing traditional mosaic and sandblasted facades. The light yet strong characteristics make them ideal for high-rise buildings where they withstand various loads, particularly wind pressure, without the deformation issues common with mosaic materials.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 24
Aluminum hollow panels are suitable for facades, fences, canopies, ceilings, screens, windows, and other applications. Choose patterns from our catalog or provide drawings/pictures for custom design.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 25
Advanced CNC Cutting Technology
With imported CNC cutting machines, punching machines, professional software, experienced designers, and global project experience, you can trust us with your facade projects.
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 26 PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 27
To meet individual customer requirements, select patterns from our renderings or provide custom designs. Our goal is to create the best customized products for each client. Aluminum hollow panel sizes can be adjusted with design element considerations, not simple scaling. Standard size is 1200x2400mm; larger sizes require panel combination.
Perforated Aluminum Metal Cladding Project Reference
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 28
Fence Decoration Applications
PVDF Coated Solid Aluminum Wall Cladding with 3mm Thickness and 20 Years Warranty for Building Facade 29
