Payment & Shipping Terms:
|Material:||Aluminum Alloy||Recommand Size:||1000x2000mm|
|Aluminum Thickness:||2mm||Surface Treatment:||Powder Coated|
|Color:||Any RAL Color, Wood Grain, Stone Color, Brass, Bronze||Applications:||Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony|
|Max. Size:||1500x5000mm||Processing:||Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing|
|Technology:||Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved||Keywords:||Solid Aluminum Wall Cladding|

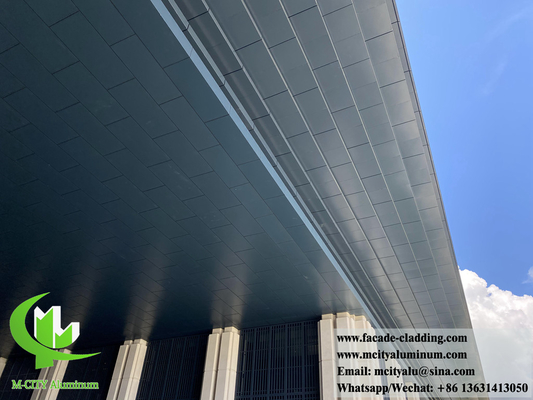

Solid aluminium panels metal wall cladding for facade, ceiling interior and exterior decoration
Punching metal sheet with round holes perforation pattern
CNC cutting design aluminium sheet, any design can be made.
3D perforation metal cladding aluminium facades
A professional manufacturer, M-City Aluminum have excellent design team and fabrication workers as well as advanced CNC facilities, we can produce the Aluminum panels according to customer’s requirements for dimensions, specifications, shapes, structures, colors and competitive budgets. We can also send engineer to the site to measure installation specifications and work out shop drawings to help the customers with smooth installation.
All Aluminum cladding are prefabricated according to customer’s designs and drawings, you only need to make a frame and prepare some bolts for installation, finally use some sealants to finish the gaps among panels. It is an easy job for envelope and decoration of buildings.
The metal facade panel is made of high-quality high-strength aluminum alloy sheet, and its commonly used thickness is 1.5mm, 2.0mm, 2.5mm, 3.0mm. The maximum width of the sheet is within 2000mm, the maximum length is within 6000mm, and the aluminum alloy series is 3003-H14 or 1100-H14. It consists of a panel, reinforce bar and bracket. The corner bracket can be directly stamped from the panel, bent and formed, or the corner bracket can be riveted on the small folding edges of the panel. The reinforce bar are connected to the welding screws behind the board surface, making it a solid whole, which greatly enhances the strength and rigidity of the solid aluminum cladding panel, and ensures the flatness and resistance to wind pressure and earthquake resistance of the aluminum cladding in long-term use. If sound insulation is required, high-efficiency sound insulation materials can be installed inside the aluminum panel
Metal cladding solid aluminum panels Containers loading, ship by sea to all over the world.
M-City aluminium factory produce all kinds of metal cladding panel with perforation design or laser cut design . Welcome to send us requirements for your facade design

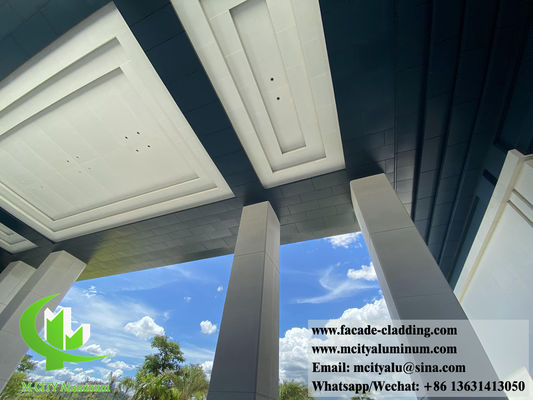

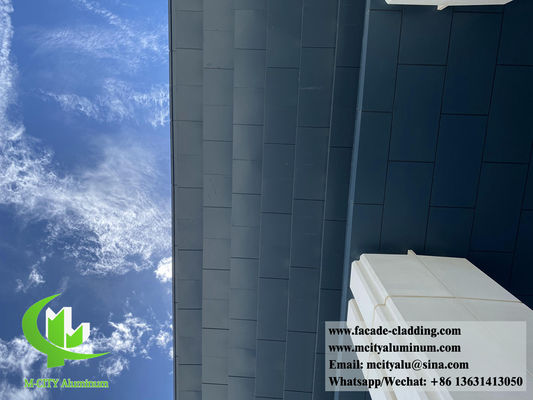

Architectural metal cladding perforated aluminium facades project in Guangdong
3D metal facade for wall cladding details.
1: Are you trading company or factory?
2: Can you accept our own designs?
3: What is your MOQ order?
4: what is the delivery time?
Please contact me for more details
Any patterns/design can be made, you can provide us the drawing or picture.
M-CITY metal aluminum facade specification
Aluminum panels are made of Aluminum alloy 3003 series (aluminum sheet), As a kind of curtain wall, used for wall protection and non-lighting walls, instead of mosaic and general sandblasting facade. With its light texture, good strength characteristics in the use of high-rise buildings have advantages, due to various loads at high-rise buildings all the time, especially by the wind pressure, mosaic Easy to fall off, because of the large wind pressure and deformation. aluminum panel based on its unique advantages and can be used in high building widely.
|Materials:||Aluminum alloy 1100 /3003 series|
|Other size:||Max. Width: 1200mm Max. Lenght: 5000mm|
|Surface treatment:||Powder coated, PVDF paint|
|Color:||Any RAL colors, wooden grain color, stone color, etc.|
|Coating:||Akzo Nobel, PPG, etc.|
|Application:||Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers etc.|
|Patterns||Any patterns can be made, just supply us the drawing or picture|
Painting decorative aluminium sheet
Aluminum hollow panel will be used for facade, fence, canopy, ceiling, screen, window, etc. You can choose the patterns from our catalogue or send us the drawing or picture, we can draw it for you.
CNC cutting machine
With imported CNC cutting machines, punching machines, professional software and designers, and various of projects we have done all over the world. You will feel relief when you send the projects to us.
Powder coate line
In order to meet the individual requirements of each customer, you can select the pattern in the renderings directly, you can also choose the patterns of your favorite pattern customization, our target is to customize the best products for each customer. Aluminum Hollow panel can be adjusted size, not a simple zoom, but according to customer size adjustment design elements. But our standard size is 1200x2400mm, if bigger than this size should be combinated.
Perforated aluminum metal cladding project reference
For fence decoration
