PVDF Coated Oval Shape Aluminum Aerofoil Louver 100mm-600mm for Facade Window

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

PVDF aluminum louver facade fins

oval architectural aerofoil sun louver

aluminum aerofoil louver for windows

Product Description

PVDF Architectural Aerofoil Fins Aluminum Louver with Oval Shape

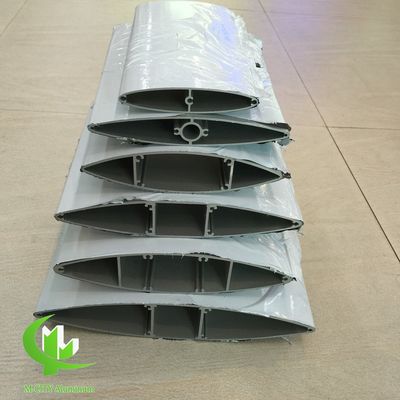

M-CITY Aerofoil/Airfoil Louver blade series feature aluminum extrusion profiles (6063-T5/T6) in elliptical shapes. These architectural louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope. Beyond their outstanding functionality, they enable architects to create distinctive building aesthetics through well-designed configurations that shade facades against various sun angles.

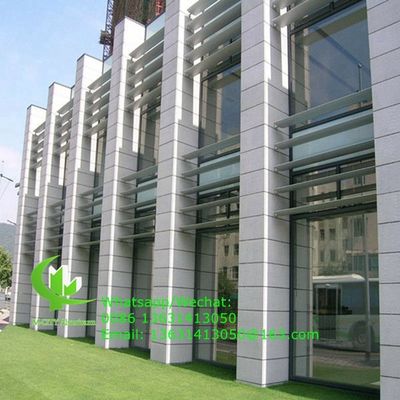

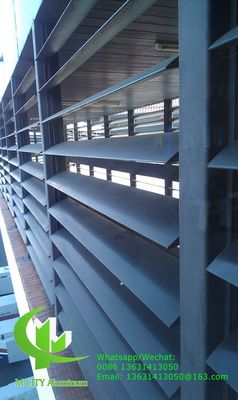

Vertical Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

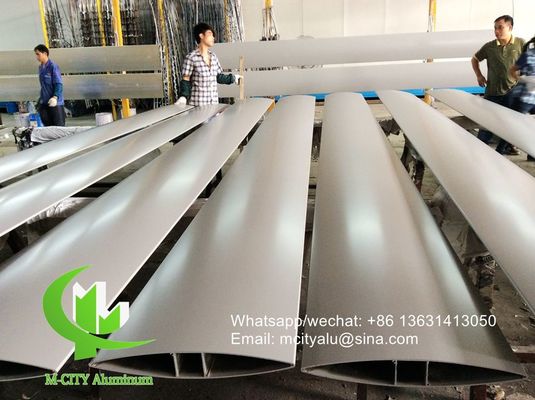

M-CITY aerofoil louvers offer blade widths from 100mm to 600mm tip to tip. The extruded construction provides enhanced durability and strength. These louvers can be customized for specific daylighting effects and aesthetic requirements through various shapes, compositions, and finishes.

Product Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony, etc. Welcome to send us drawings and inquiries - we will try our best to support your project.

Fence Decorative Applications
