200mm Aluminum 6063-T5/T6 Aerofoil Louvers with Powder Coated Finish for Building Facade

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Material:

Aluminum 6063-T5/T6

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder, Coated, PVDF Paint, Anodized

Color:

Any Ral Colors, Wood Grain, Ston Color

Thickness:

1.0-3.0mm

Coating:

Akzo Nobel, PPG.etc

Contact Email:

Mcityalu@sina.com

Type:

Horizontal. Vertical

System:

Fixed

Application:

Facade, Cladding, Window, Fence

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

200mm aluminum louvres for buildings

architectural aluminum sun louver

China supplier aluminum louvres

Product Description

200mm Aluminum Aerofoil Louvers for Building Decoration

Professional-grade 200mm width aluminum aerofoil louver blades manufactured in Guangdong, China, designed for architectural building decoration according to specific design requirements.

M-CITY Aerofoil/Airfoil Louver Blade Series

Our aerofoil louvers are precision-extruded from high-quality aluminum profiles (6063-T5/T6) featuring elliptical shapes. These advanced louver systems effectively deflect thermal gain from solar exposure while integrating sophisticated light control into the building envelope.

Beyond exceptional functionality, our louvers enable architects to create distinctive visual statements for building surfaces. Well-configured louver arrangements provide striking aesthetics while effectively shading facades against varying sun angles, making both an architectural and performance statement.

Available in blade widths ranging from 100mm to 600mm tip to tip, our extruded louvers deliver superior durability and structural strength. The composition, shape, and finish options allow creation of specific daylighting effects while establishing unique architectural aesthetics.

Custom fabrication available in virtually any size requirement
Primary material: aluminum with options including glass and wood
Multiple finish options: polyester powder coating, fluorocarbon painting (PVDF), and anodized treatments
All finishes provide excellent resistance to sun exposure and weather damage

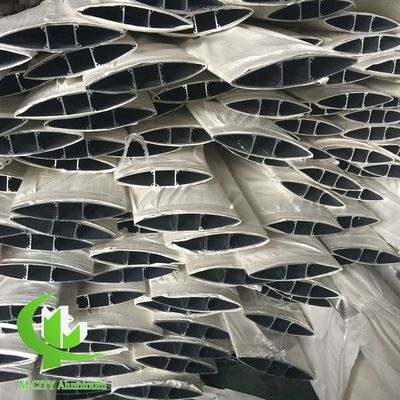

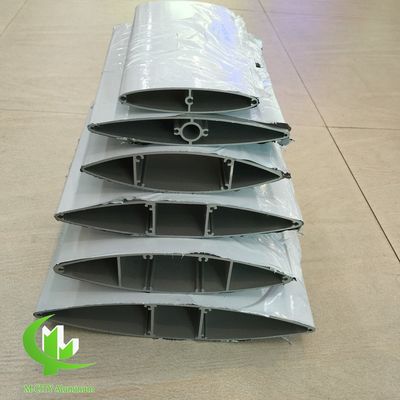

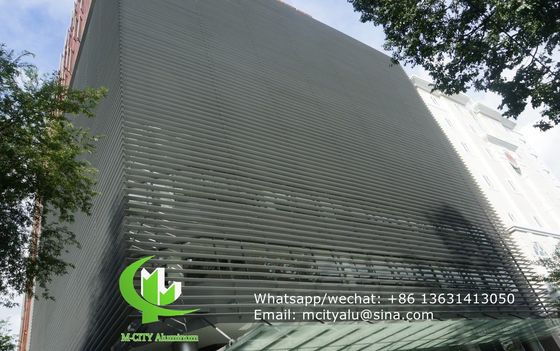

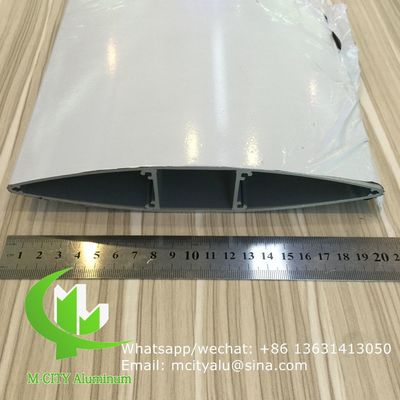

Product Gallery

Installation Methods

Method A: Direct fixation to support frame using screws

Method B: Bracket mounting with screw attachment to support frame

Method C: Endcap fixation on both ends

Method D: Custom installation according to architect's design specifications

Technical Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture specialized aluminum panels including decorative facade panels, curtain wall cladding, fencing systems, and screening solutions. Please share your drawings or project inquiries – we are committed to supporting your architectural vision with our manufacturing expertise.
