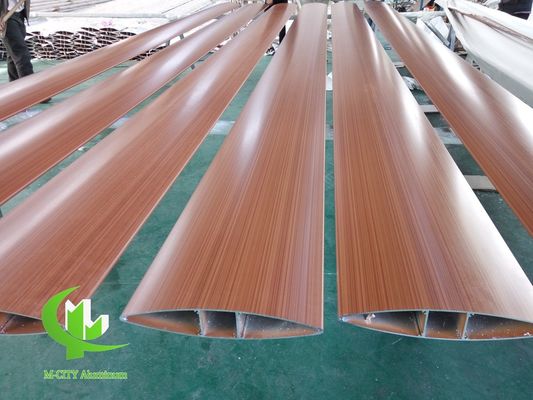

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

China 300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall supplier
300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall supplier 300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall supplier 300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall supplier

Large Image :  300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

Product Details:

Place of Origin: China
Brand Name: M-CITY
Certification: ISO:9000
Model Number: MCT-AF300

Payment & Shipping Terms:

Minimum Order Quantity: 100square meters
Price: USD50-150.00/sq,m
Packaging Details: export packing, metal cases, plywood cases
Delivery Time: 15-30days
Payment Terms: T/T, L/C
Supply Ability: 9000sq.m
Contact Now
Detailed Product Description
Materials: Aluminum Alloy Size: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm
Surface Treatment: Powder Coated, PVDF Paint, Anodized Coating: Akzo Nobel, PPG
Pattern: Horizontal, Vertical Type: Fixed System
Color: Any RAL Colors, Wood Grain Color, Stone Color Accessoires: Endcaps, Support Frame
Application: Facade, Window, Curtain Wall, Fence, Sunshade Email: Mcityalu@sina.com

250mm Powder coated Architectural aluminum Aerofoil louver profile aluminum louver blade with oval shape for facade curtain wall

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

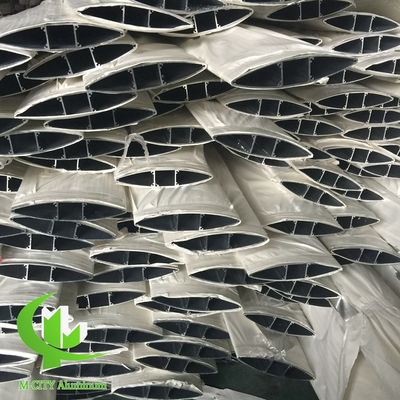

M-CITY Aerofoil/Airfoil Louver blade series The M-CITY aerofoil (fin) louvers are based on Aluminum extrusion profile (6063-T5/T6). Most are ellipse shape aluminum profile. Deflect thermal gain from incident sun, integrating light control into the building envelope. Not only they deliver outstanding functionality, but will also help architects create a distinctive look for the building surface. Well-designed louver configurations can be as striking as they are effective, shading the facade against low or high sun angles while making an aesthetic statement. As with any system, design considerations such as louver size and composition will affect performance. It can help you improve the energy efficiency of your projects.



Vertical louver Aerofoil system project in Hongkong.

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall



Installation ways Reference

  A

Fix to the support frame with screw

  B

Using Bracket and screw to the support frame

  C

Using the Endcaps to fix on two ends

  D

As per Architect’s design



The size from 100mm to 600mm are available.

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall





M-CITY aerofoil louvers blade width from 100 mm to 600 mm tip to tip. Extruded louvers are more durable. more strength . Louver shapes, composition, and finish also can be used to create specific daylighting effects as well as establishing a different aesthetic. - Fabricated louvers can be created at nearly any size. - Aerofoil composition is typically metal (aluminum ), but many other options exist, including glass and wood. - M-CITY metal louvers typically have finishes include polyester powder coating and flurocarbon painting (PVDF paint) and Anodized. All resist damage to sun or weather.



300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall



Materials: Aluminum extrusion (6063-T5/T6)
Size/Width: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length: From 1000mm-7000mm
Thickness: From 1.0mm-3.0mm
Surface finish: Powder coated, flurocarbon paint, Anodized
Color: Any RAL colors and wooden grain colors are available.
Coating: Akzo Nobel, PPG, etc.
Applications: Commercial Building, School, Metro, Raiway station, Office, Residential, etc.



We also manufacture aluminum decorative panel (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony etc.

Welcome to send us drawing and inquiry, we will try our best to support your project.



300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wallF

For fence decorative

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall

300mm wood grain color Architectural aluminum Aerofoil louver blade with oval shape for facade curtain wall
